rail fastening
System and structure of the modular rail system

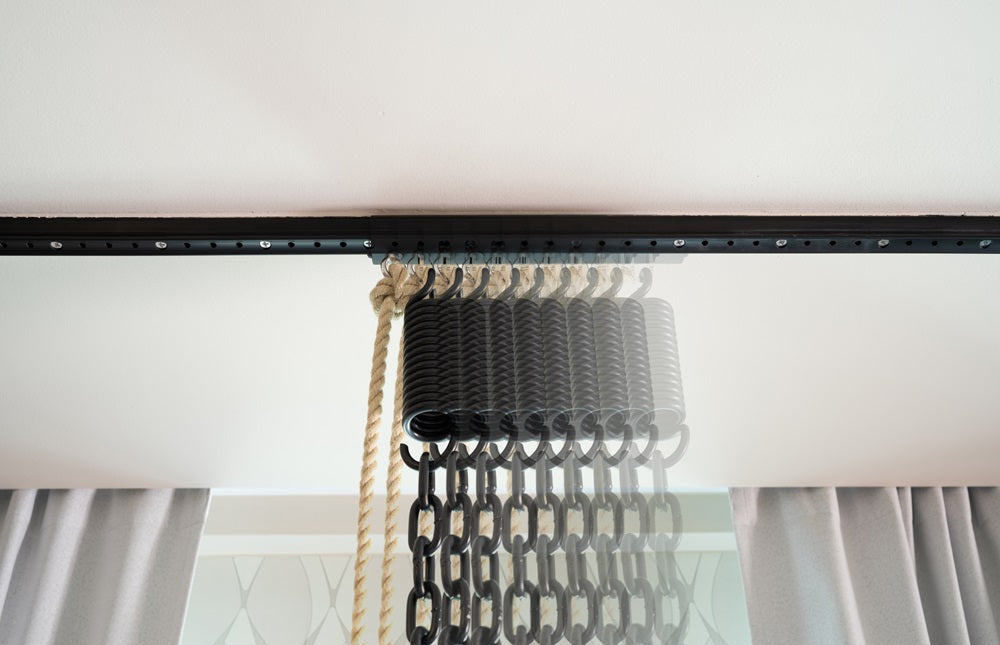

With the lockable equipment sled, you can flexibly change the exercise position along the rail as required. By using several sleds on one rail, you can even move different training devices to different positions.
"Vidar"
standard series
"Bo"
Professional Series
Two rail systems available - this is how it works:
- Combine at least one set module from the available rail series "Vidar" or "Bo" (50 or 100 cm) with one sled per training device. The systems are not compatible with each other.
- Longer systems can be made up of any number of rail modules that can be seamlessly connected and used over the entire length.
- The “Bo” rail system also allows you to create curved rail modules with a radius of 45° and 90° around curves.
The modular system is ideal for easy-to-plan rooms in home training and also in commercial areas. It can be adapted precisely to your requirements together with the optionally available accessories.

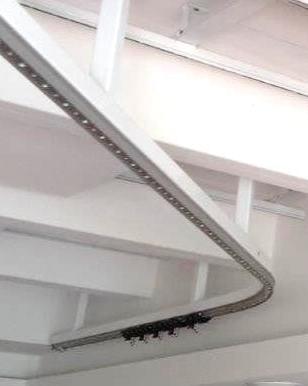

Curved ceiling rails for sports equipment

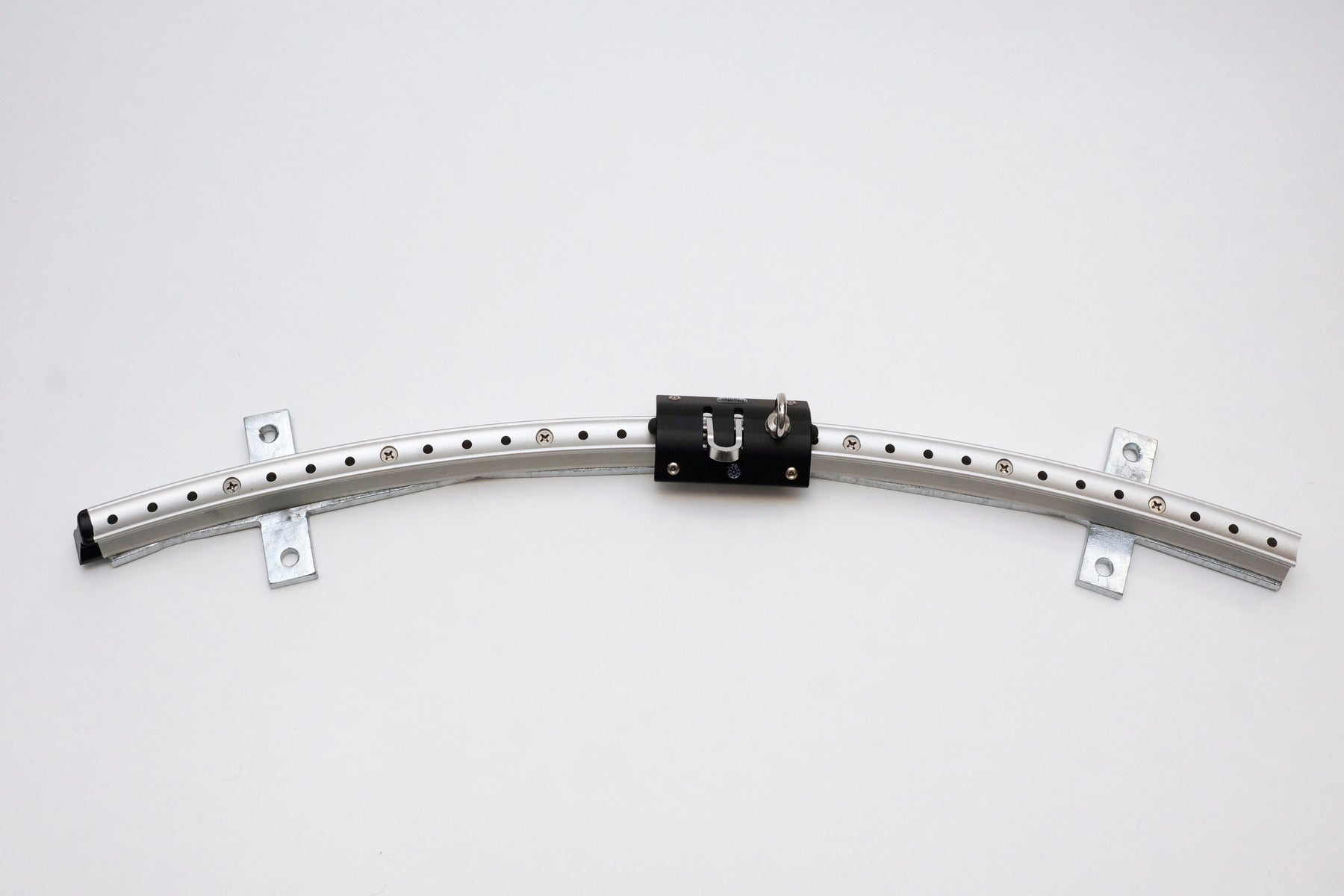

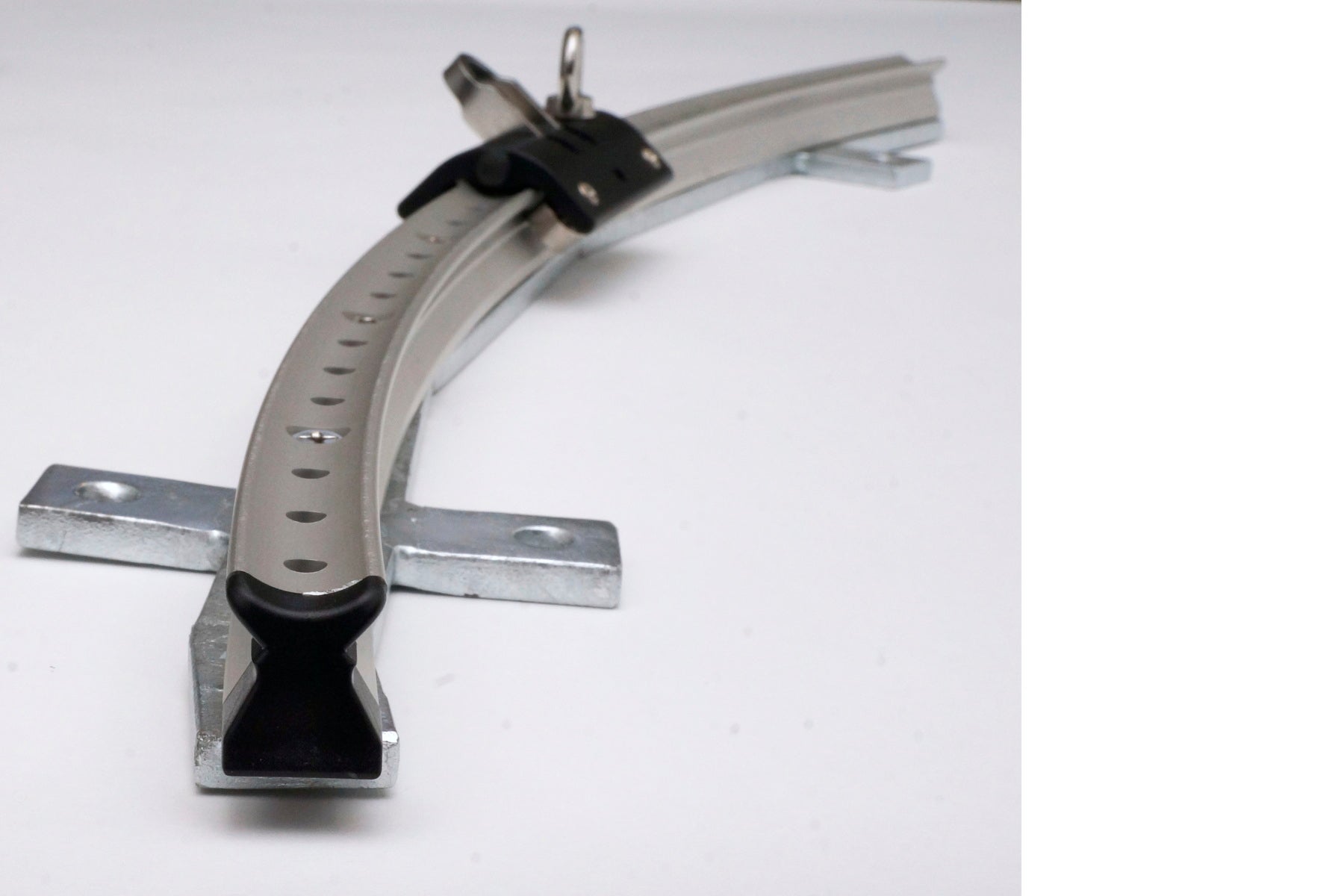

The "Bo" system offers curved rail modules with a radius of 45°, which can be extended to 90° when assembled.
Demarcation of ceiling rail systems
Standard rail system "Vidar" in modular design
- available in modular design
- Standard transport carriage with shackle that can be moved in a plastic groove by pulling or pushing.
- The system is designed for linear installations.
Home-Pro rail system "Bo":
- Available in modular design (in 50cm and 100cm lengths) and as individual rails (accurate to the centimeter).
- Ball bearing carriage on a specially manufactured rail for extremely easy and fluid movements.
- Possibility of building curves, which offers considerable flexibility in spatial planning.
- The transport carriage rolls along by itself when gently pulled or pushed, making it easier to handle.
- Specially optimized for higher and permanently hanging loads, making it ideal for punching bags and similar training equipment.
Rail systems custom construction "Nils"
- are adapted precisely to the ceiling situation after individual consultation and room planning.
- bridge gaps between the soffit and the suspension elements by means of ceiling suspensions.
- Centimeter-accurate manufacturing of the entire system.
- After production, the turnkey delivery takes place in individual modular elements for easy assembly.
- Optionally available with or without ball-bearing transport carriage.
- can be customized to fit almost any ceiling situation.
- carries even higher loads.
Application areas of the rail systems
Standard rail system "Vidar":
Ideal for users who are looking for a versatile and robust system for a variety of training equipment and who value a flexible but linear arrangement. It is suitable for both private and commercial use, where the basic installation offers a direct and simple solution for training areas.
Home-Pro rail system "Bo":
Designed for ambitious private users and professionals who require a turnkey and highly customizable solution, especially for constantly suspended loads and in spaces that require flexible layout. The ability to incorporate curves and the ball bearing transport carriage make it unique for complex installations.
Individual construction Standard and Professional:
Our most flexible and efficient rail system. Manufactured individually after free preliminary consultation. The solution for sophisticated room planning and challenging ceiling situations caused by hanging elements, brick construction, high rooms and other building challenges. Maximum load-bearing and designed for constant use.
Detailed construction of the modular prefabricated sets for movable training equipment
The construction consists of aluminum rails that are pre-assembled on a flat steel substructure. Each rail module has 4 steel wings at the beginning and end with screw holes for ceiling attachment.

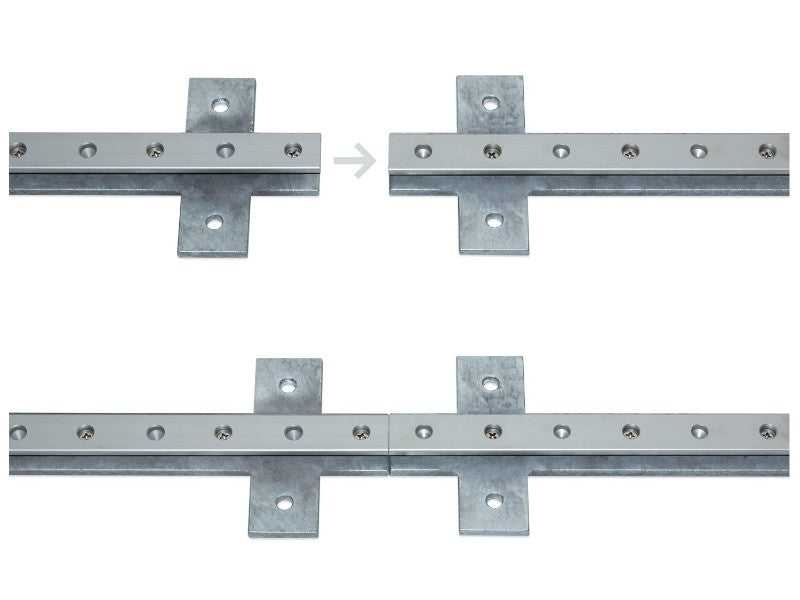

These rail elements can be seamlessly connected at intervals of 100cm or 50cm. It works the same way with curved rails. The equipment carriages run on the rail and can be locked every 10cm for "Standard" or every 3cm for "Home Pro". Stoppers and end pieces round off the system.

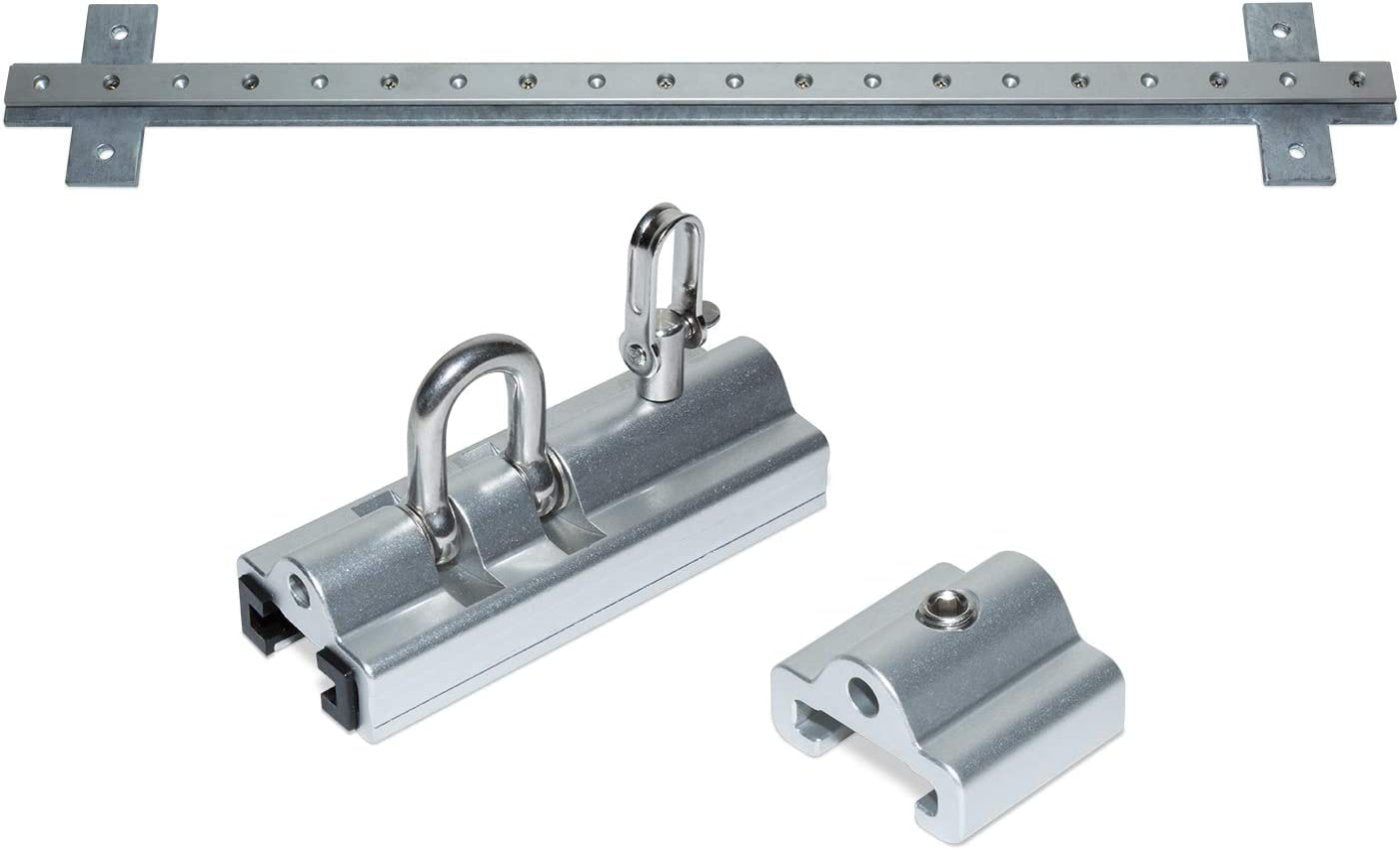

Elements of the modular standard system "Vidar" for ceiling rails
The massive rail
...made of aluminum is fixed to a steel base every 10 cm to prevent twisting. There are four mounting holes (Ø 10mm) on the side of the steel bottom rail for fastening to the ceiling.
The sleigh
...can be flexibly fixed to holding points along the rail every 10 cm using spring bolts. The tried and tested plastic gliders allow for smooth positioning and are designed for continuous loads.

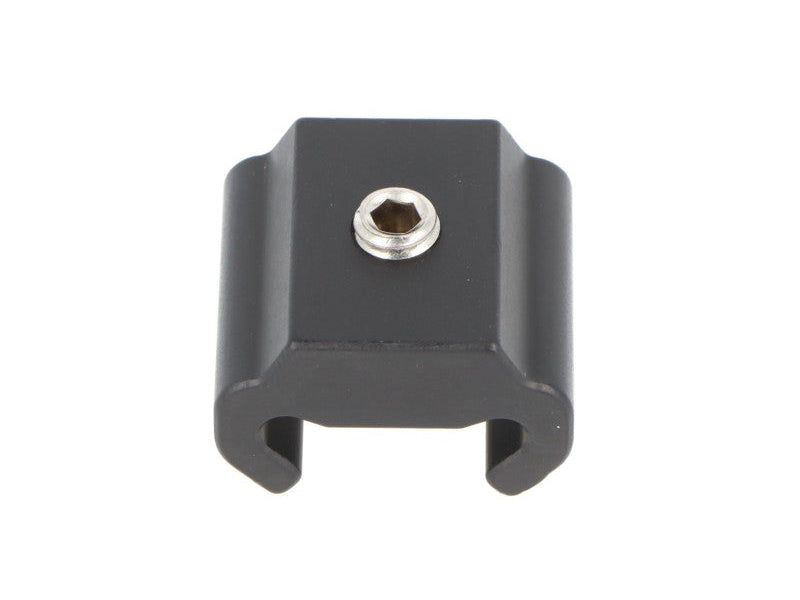

The Stopper
... acts as a permanent end stop to prevent the carriage from accidentally coming loose from the rail. This can also be used as a separator for several devices on a long rail.

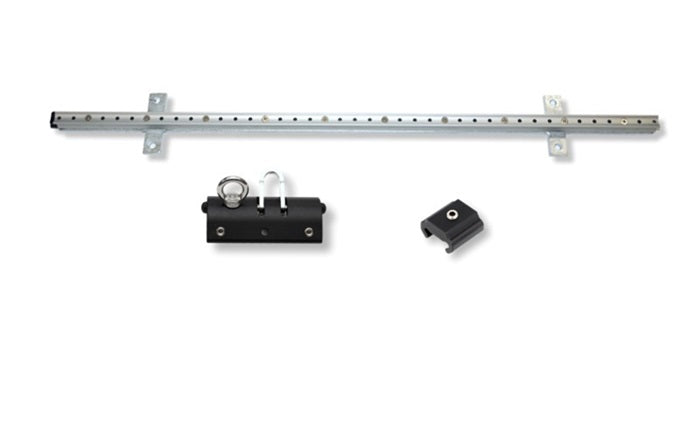

Elements of the modular Home Pro system "Bo" for ceiling rails

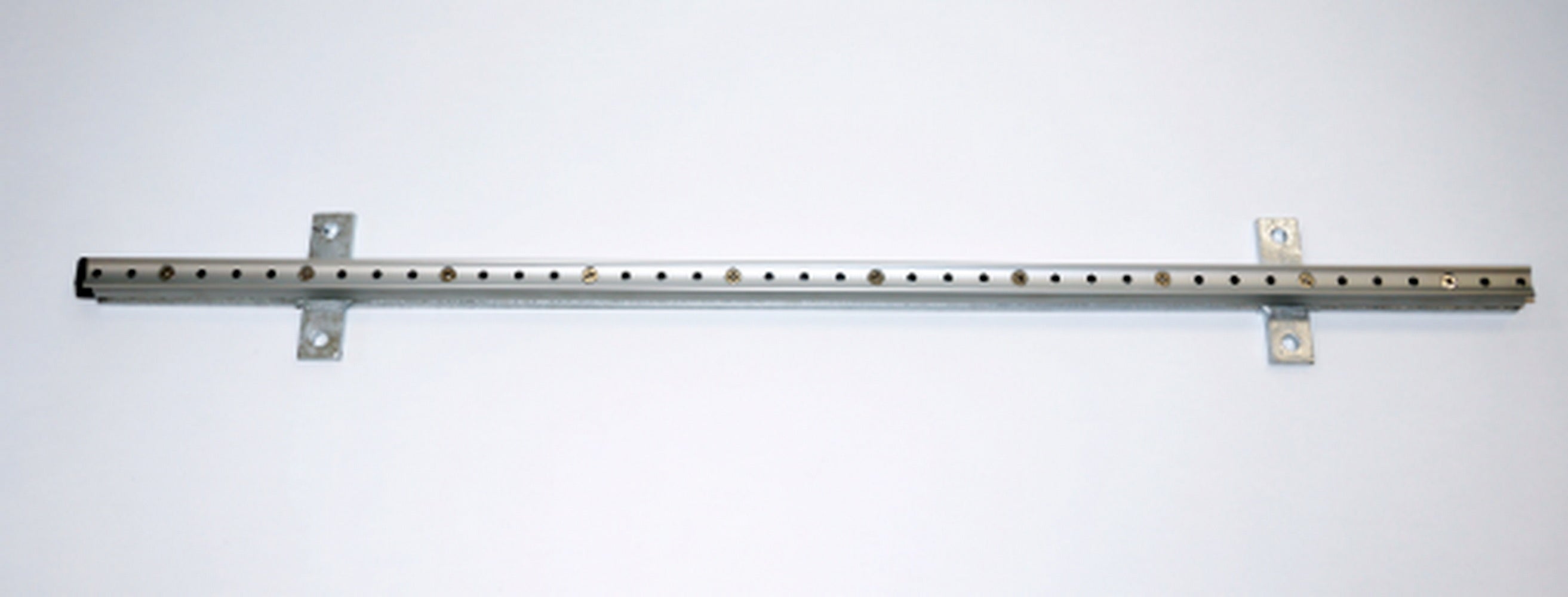

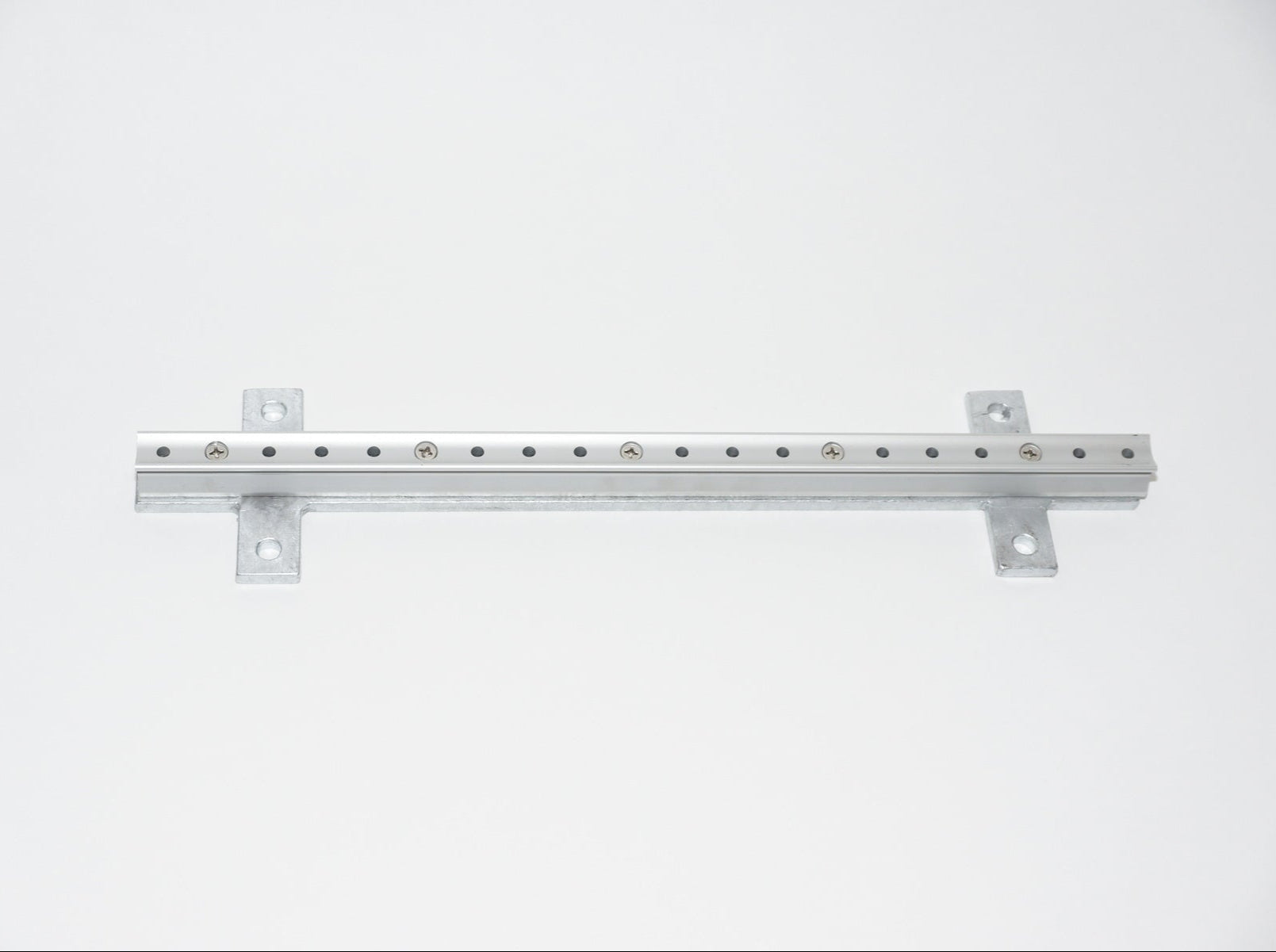

The rail
... made of aluminum is fixed to a steel base every 10 cm to prevent twisting. There are four mounting holes (Ø 10mm) on the side of the steel bottom rail for fastening to the ceiling. In between there are openings every 3 cm for locking the slide.

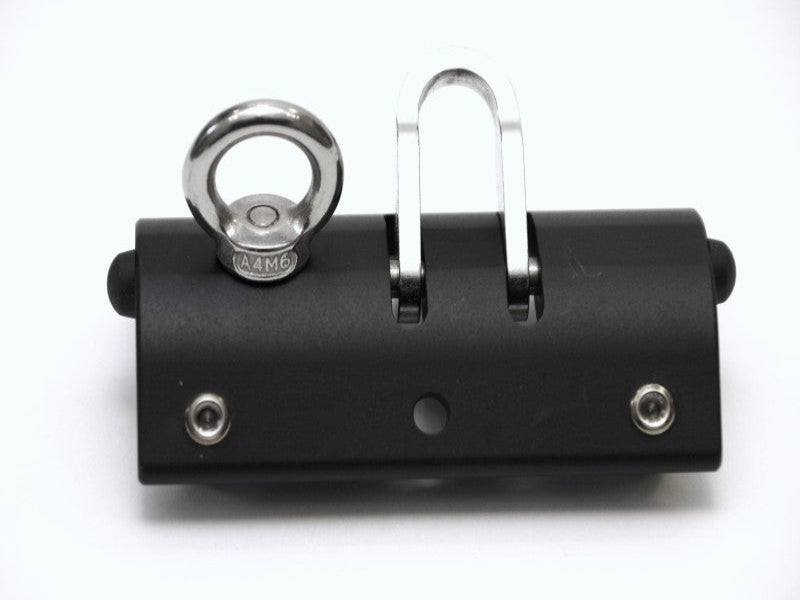

The transport carriage
... can be flexibly fixed to holding points along the rail every 3 cm using spring bolts. The tried and tested ball bearing rollers allow even heavier loads to be rolled easily and quickly to the place of use and are designed for continuous loads.

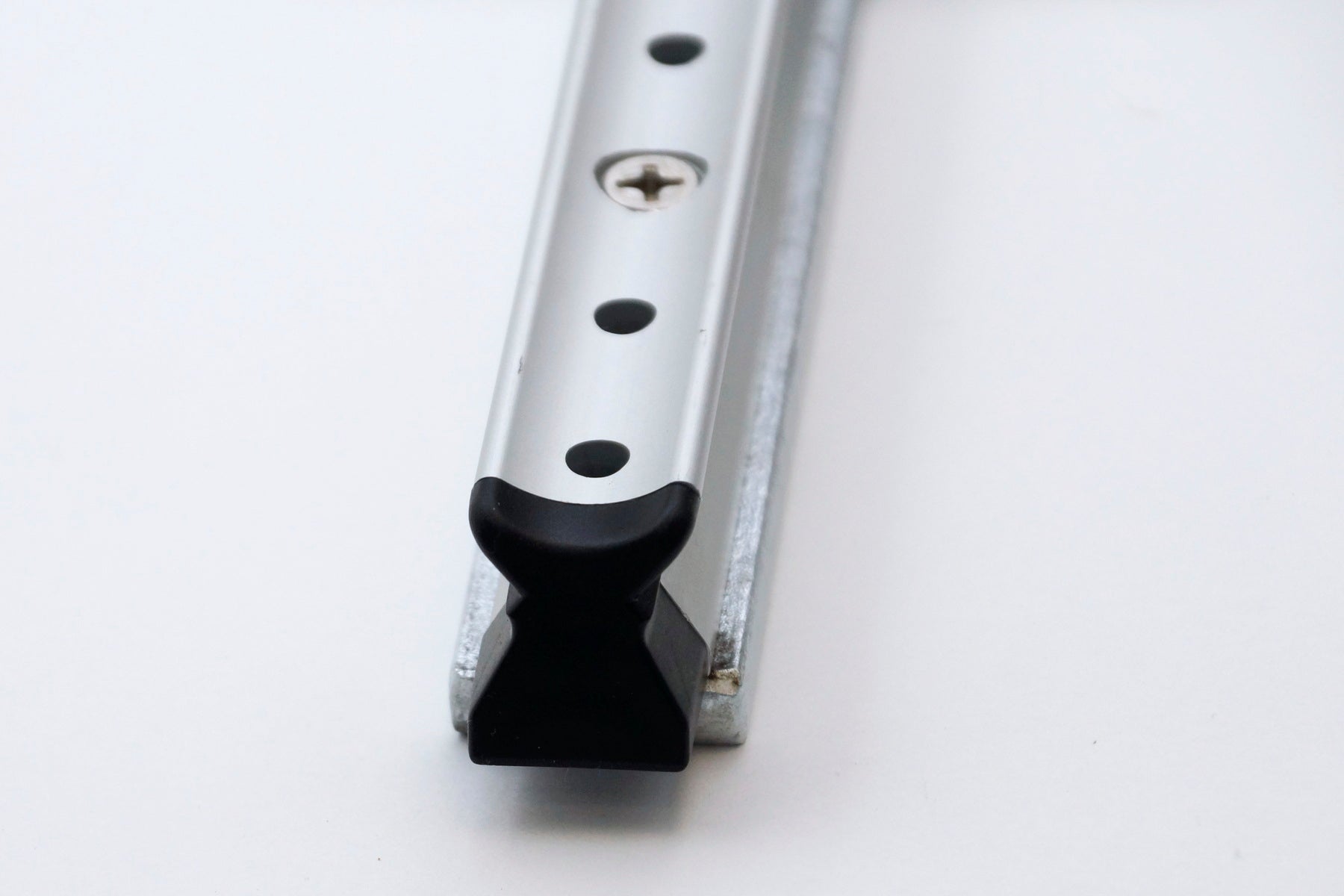

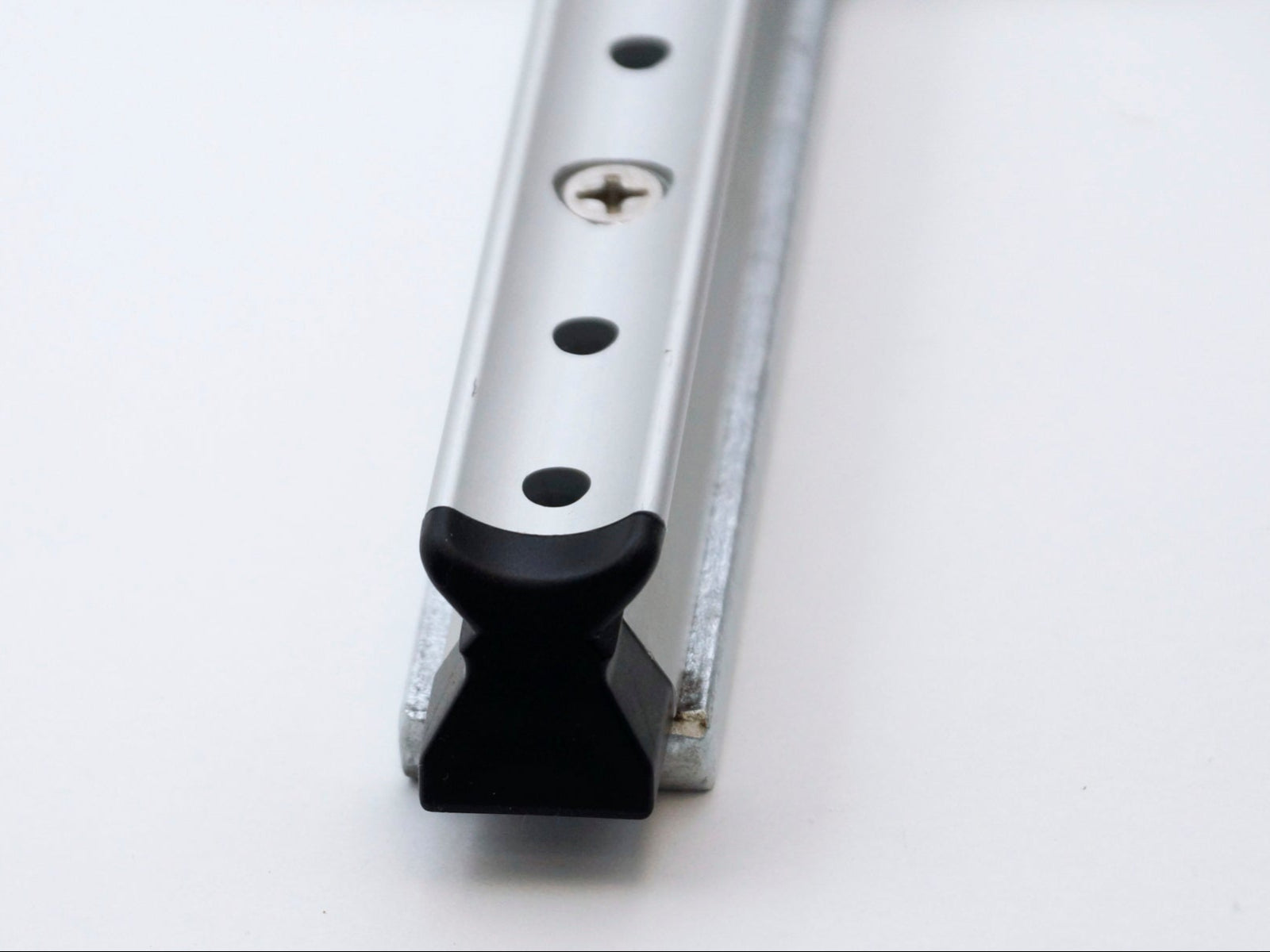

The Stopper
... acts as a permanent end stop to prevent the carriage from accidentally coming loose from the rail. This can also be used as a separator for several devices on a long rail.
